Universal Workshop Cabinet w/ 2 shelves
DUS_12_A
Colour variants:
| Height | 1180 mm |
|---|---|
| Width | 950 mm |
| Depth | 500 mm |
| 1 pc | 324.59 EUR per pc | |
|---|---|---|
| For 2 or more pc | 292.12 EUR per pc |
Save 32.47EUR
|
Equipment
Perforated panel
Perforated panel
Part of the product is a perforated panel for tool holder.
Shelf for workshop cabinets
Shelf for workshop cabinets
Shelf for workshop cabinets - 60kg capacity.
Turning poles mechanisms
Two-point door locking
Two-point door locking
Two-point door locking, bottom and top.
Door hanging
Internal hinge pins
Internal hinge pins
Doors with internal hinge pins, allow an opening angle of 110°.
Door types
Glass doors
Glass doors
Glass doors - 4mm thick tempered safety glass set in a steel frame.
Price upon request
Add to product
Wire grate doors
Wire grate doors
Wire grate doors - Panel made of hammered metal wire and powder coated the same colour as the cabinet body. Grate hole size is 22 x 12mm, mounted in a steel frame.
Price upon request
Add to product
Equipment
Shelf for workshop cabinets
Shelf for workshop cabinets
Shelf for workshop cabinets - 60kg capacity.
32,55 EUR
39,38 EUR inc. VAT
Add to product
Label
Plastic shell
Plastic shell
Plastic shell for a name plate.
1,65 EUR
1,99 EUR inc. VAT
Add to product
Description

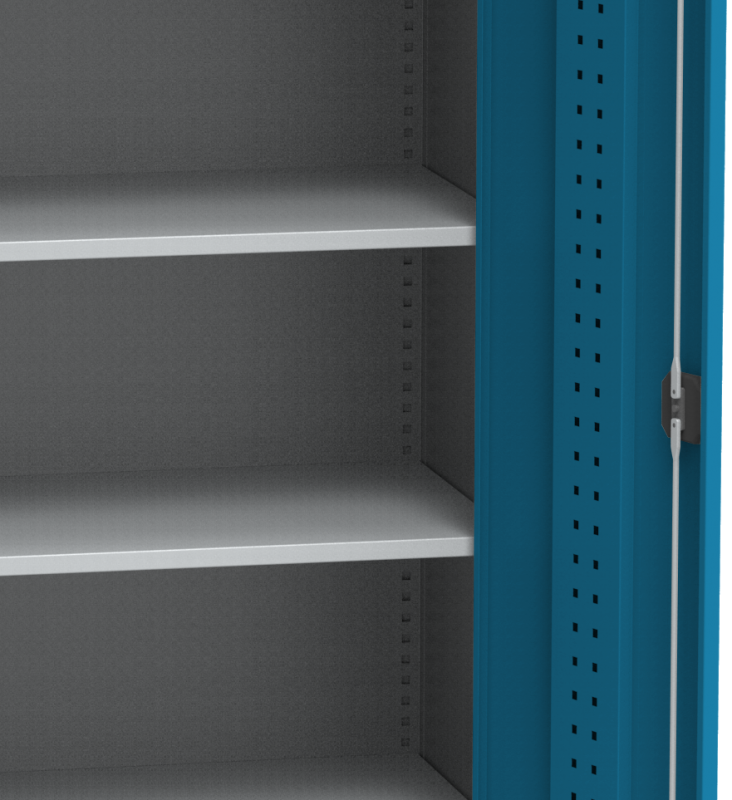

High-quality metal cabinet based on the design of our Heavy-Duty SPD series cabinets but with a lighter frame. This cabinet includes 4 adjustable shelves (25mm steps) and reinforced doors with an inner perforation for our QDN hooks for hanging various tools/accessories. This cabinet is ideal for production areas, garages, repair shops, testing rooms and laboratories as well as schools and training centers.
Locks / locking
- GSB lock, 2 keys, 2000 combinations, possibility of Master Key
- Double-point door locking, top and bottom
Internal layout
- 2 x adjustable shelves (25 mm steps) - (H x W x D) 22 x 943 x 462 mm - (DUS_11_P1)
Door
- Steel door with internal perforated reinforcement for hanging tool holders KOVOS - QDN.
- Doors made with 0.7mm thick sheet metal
- Inner pins (hingeless) with 110° angle of openingParameters
Height: 1180 mmWidth: 950 mm
Depth: 500 mm
Weight: 46 kg
Number of compartments/doors: 2
Number of shelves: 2
Load capacity (body): 400 kg
Load capacity (shelf): 60 kg
