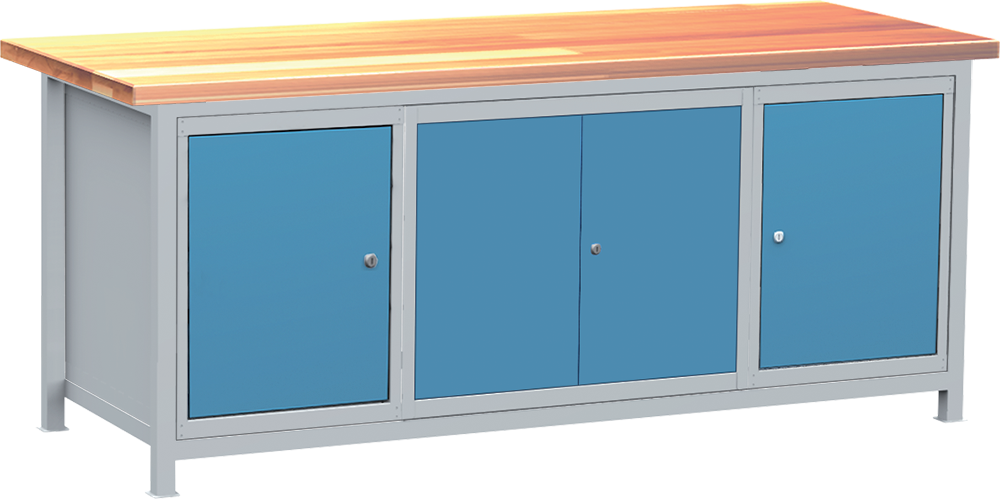

Welded Workshop Workbench - DPJ_205
Colour design at standard prices:
| Height | 850 mm |
|---|---|
| Width | 2000 mm |
| Depth | 750 mm |
Worktop
Beech board 40mm
Heavy-duty 40mm worktop made of square pieces of beech glued together, sanded and treated with linseed oil solution with additives. The upper rims are beveled.
Turning poles mechanisms
Two-point door locking
Two-point door locking, bottom and top.
Door hanging
Internal hinge pins
Doors with internal hinge pins, allow an opening angle of 110°.
Equipment
Perforated panel
Part of the product is a perforated panel for tool holder.
Shelf for workshop cabinets
Shelf for workshop cabinets - 60kg capacity.
Shelf for workshop cabinets
Shelf for workshop cabinets - 20kg capacity.
Door types
Reinforced steel doors
Reinforced steel doors - 1mm thick sheet metal doors with perforated interior reinforcement used for hanging QDN series hooks and accessories.
Closures / Locking
Cylinder lock C1
Rotary bolt lock for padlock (suitable for shackle thickness 6 mm). The padlock is not included.
Equipment
Shelf for workshop cabinets
Shelf for workshop cabinets - 60kg capacity.
Shelf for workshop cabinets
Shelf for workshop cabinets - 20kg capacity.
Turning poles mechanisms
Three-point door locking
Three-point door locking, bottom, middle and top.
Základní popis
This is a sample of a welded workshop workbench from our DPJ line with a perforated panel ideal for hanging various tools/accessories. This table was created in our online Workbench configuration application at www.workbench-creator.com
Vnitřní uspořádání
Components used:
Frame: DPJ_R2_A
Tabletop 40mm (Beech) jointed board: DPS_02_BS40
2 x Basic container w/ 1 door and 2 shelves: DPP_02_D
Center basic container w/ 2 doors and 1 shelf: DPM_02_D
Table Code: DPJ_2104304_C17151
Top panel Code: N_20000_BU0000
Link for this table pre-created in our online application www.workbench-creator.com:
Configuration of Welded Workbench - DPJ_205Parameters
Height: 850 mmWidth: 2000 mm
Depth: 750 mm
Weight: 164 kg
Počet oddělení / dveří: 4
Počet polic: 5
Nosnost korpusu: 1000 kg
Nosnost police: 60 kg
